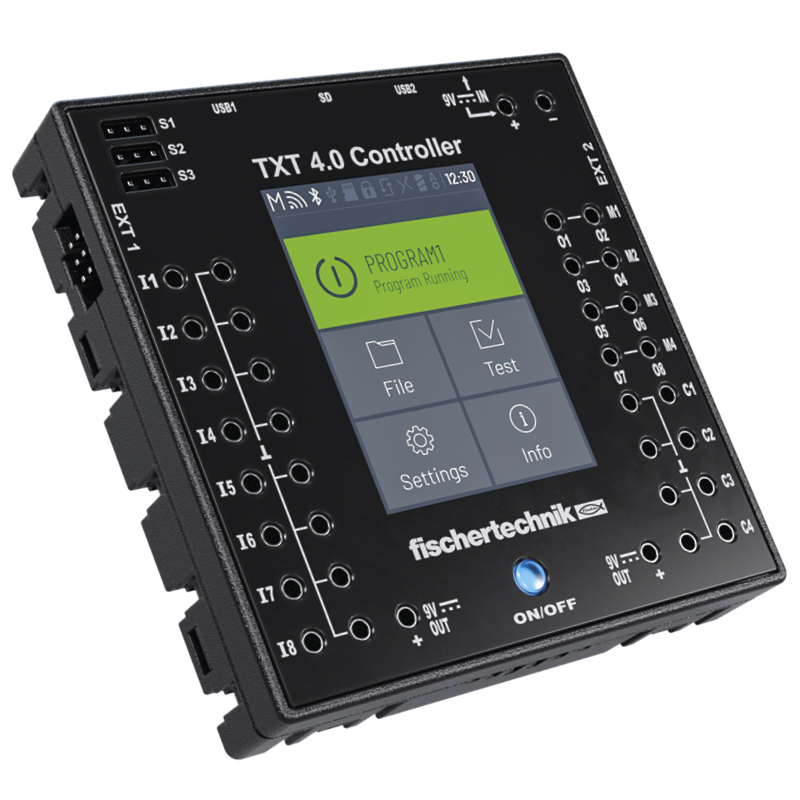

fischertechnik Robotics Txt 4.0 Controller

fischertechnik Robotics PLUS Controller 4.0

Measure, control and regulate!
The TXT 4.0 controller offers lots of new features with its 512 MB RAM and 4 GB eMMC memory, three servo outputs, and an interactive touch display that supports swipe gestures. The improved WLAN and Bluetooth module offers a suitable wireless interface for numerous applications. Another interface is the USB host port, which allows connection of e.g. the fischertechnik USB camera or USB sticks.
Up to eight additional controllers can be connected as extensions to a single controller. The slim housing enables straightforward integration of the controller in the models. To make sure you are always up to date, firmware updates are automatically downloaded via the cloud, while your own programs are retained. The ROBO Pro Coding software allows programming either with graphic tools or Python. This is independent of the operating system and can also be used on mobile devices.

Other features of the controller include:
- Processor: Arm® dual Cortex®-A7 650 MHz + Cortex®-M4
- Memory capacity: 512 MB DDR3 RAM, 4 GB eMMC
- Memory expansion: Micro SD card slot
- Colour touch display: 2.4", 320x240 pixels, interactive (allows swipe gestures)
- Flat design, dimensions: 90x90x17.5 mm
- 8 universal inputs: digital/analogue 0-9VDC, analogue 0-5 kO /
- 4 quick clock pulse inputs: digital, frequency up to 1kHz
- 4 motor outputs 9V/250mA (max. 1 A): Speed infinitely variable, short-circuit resistant, alternatively 8 single outputs e.g. for LEDs
- 3 servo outputs 5V (max. 2A), short-circuit resistant
- Combined Bluetooth / WLAN wireless module: Bluetooth 5.0 (BR, LE & EDR), WLAN dual band 2.4 GHz and 5?GHz 802.11?a/b/g/n
- USB 2.0 Client: Mini USB socket for connection to the PC
- USB host interface: USB-A socket e.g. for fischertechnik USB camera or USB sticks
- Camera interface: via USB host, Linux camera driver integrated in operating system
- 2x connector 6-pin: for expansion of inputs and outputs (up to 9 TXT 4.0 controllers can be coupled) as well as I²C interface
- integrated speaker for playing sounds (WAV files)
- Linux based open-source operating system, firmware update via cloud, USB stick or micro SD card
- Programming with ROBO Pro Coding (graphical and Python), C/C++ compiler (not included)
- Further programming options via REST interface. Available output voltages 9V, 5V and 3.3V. Power supply: 9V DC socket 3.45 mm, or fischertechnik sockets 2.5 mm (for battery pack). Incl. USB connection cable and extension cable 6-pin

• 512 MB RAM and 4 GB eMMC memory
• 3 servo outputs and interactive touch display
• perfect integration of the controller into the models
• automatic firmware updates via the cloud

Contents:

• TXT 4.0 Controller
• mini USB cable
• extension cable, 6-pin

Please note:
Battery/electronic device disposal
