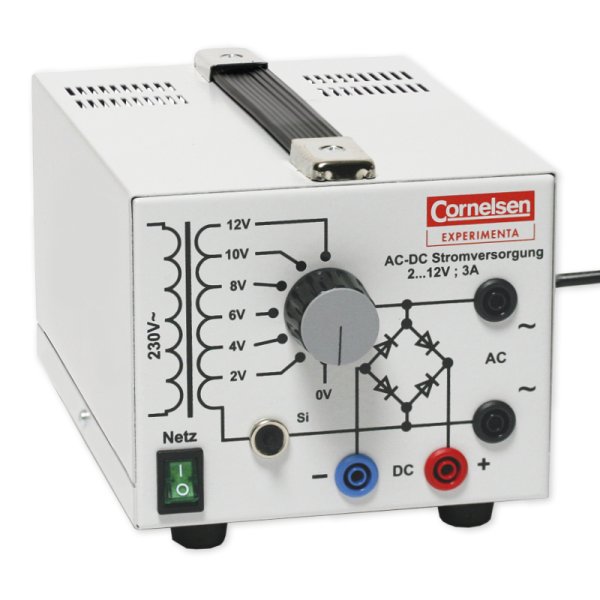

Power Supply Unit, 2 to 12 V / 3A

In ventilated steel plate casing with on/off switch and mains connection cable, coloured 4 mm safety terminal sockets for DC and AC voltage, output voltage adjustable to 6 levels, DC output smoothed, thermal overheating and short-circuit protection. All outputs galvanised and separated from the mains.

Can be used as an accessory with our experiment set electrical circuits (prod. no. 96020).

Approved for school experiments in accordance with the current German Guideline on Lesson Safety (RiSU). CE-symbol

The output voltage is not stabilised.
The configured voltage values were achieved at a 50% load. Depending on the design, the open-circuit voltages may be higher at the output points than configured.

• accessories for our experiment set on electrical circuits
• with ventilated steel plate casing and on/off switch
• operating voltage: 230 V, output voltage: 2 to 12 V

Technical details

• Outputs: 2 / 4 / 6 / 8 / 10 / 12 V AC or DC, handles up to 3 A
• Operating voltage: 230 V / 50 Hz AC
• Dimensions: 140 x 130 x 210 mm
• Mass: 3.5 kg
