Experiment Set Magnet and Compass

From dancing snakes over the garage to floating compass needles, the experiments in this case will stimulate children to have fun engaging with the phenomenon of magnetism and understanding how a compass works.

There are plenty of links with the children's own familiar world to stimulate their interest. The experiments train children to make precise observations, draw conclusions and apply their findings, e.g. to construct their own magnet or to find the north pole on unlabelled magnets.

Almost "incidentally", material knowledge can be imparted at the same time, e.g. the names of different metals.

The materials provided in the case offer a variety of child-friendly experiments and tests on the related topics of magnets and the compass. The individual steps can be done in groups or at a single workstation.
The set contains materials for up to 15 groups and experiments for 24 workstations, including corresponding copy templates. A teacher's guide contains instructions for all the steps.

Experiments on the topics magnet and compass:
Magnet - iron
- The big materials test
- A metal exhibition
- Fishing game
- The big iron test
- Rusty bike?
- The paper clip test

Magnetic force
- The oscillating paper clip
- The wandering scarecrow
- The dancing snake
- The swimming paper clip

Pro and contra (etc.)
- Magnets in the pipe
- The crazy garage
- Submarine trip

Various things about magnets
- How humans discovered the magnet
- The biggest magnet we know
- The magnet exhibition
- Magnets, make your own
- Magnets with no pole marked
- Suspended, floating and pivoting magnets

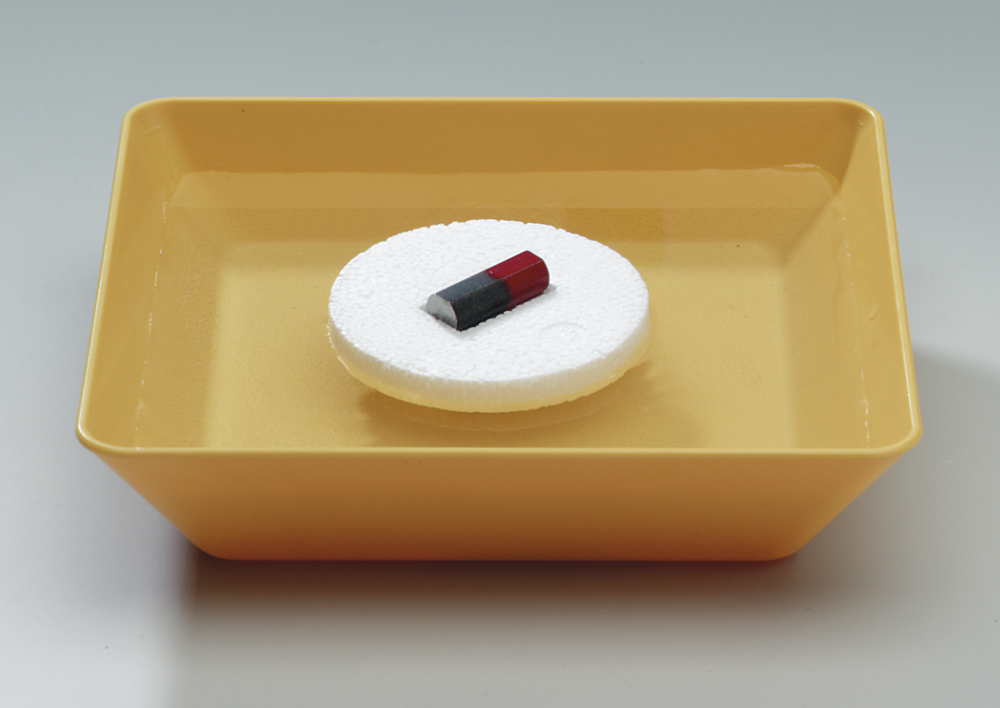

- Floating magnets
- Suspended magnets
- Suspended and floating magnets as a compass
- The floating compass needle
- A "true" compass

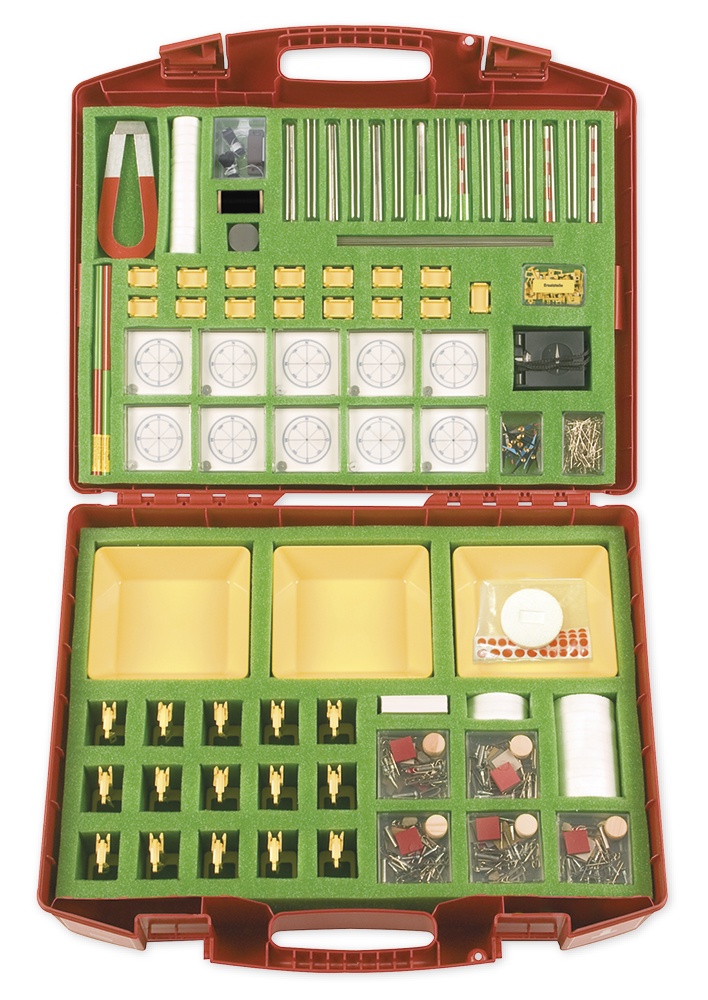

All the materials are supplied in a plastic case where everything has its fixed place in the foam insert. This makes it easy to check everything is there and the individual components won't fall around during transport.
An illustrated overview provides a good summary of where each piece belongs and can be quickly removed and replaced thanks to the hook and loop fastening.

• 24 desk tasks for experimenting with copy templates
• materials for up to 15 groups
• with teacher's guide, materials in an organised case
• suitable from 3rd or 4th year of school

Dimensions case: approx. 53.5 x 44 x 14 cm (LxWxH)

Contents:

• 1 storage plan with hook and loop fastening
• Teacher's guide, copy templates and materials

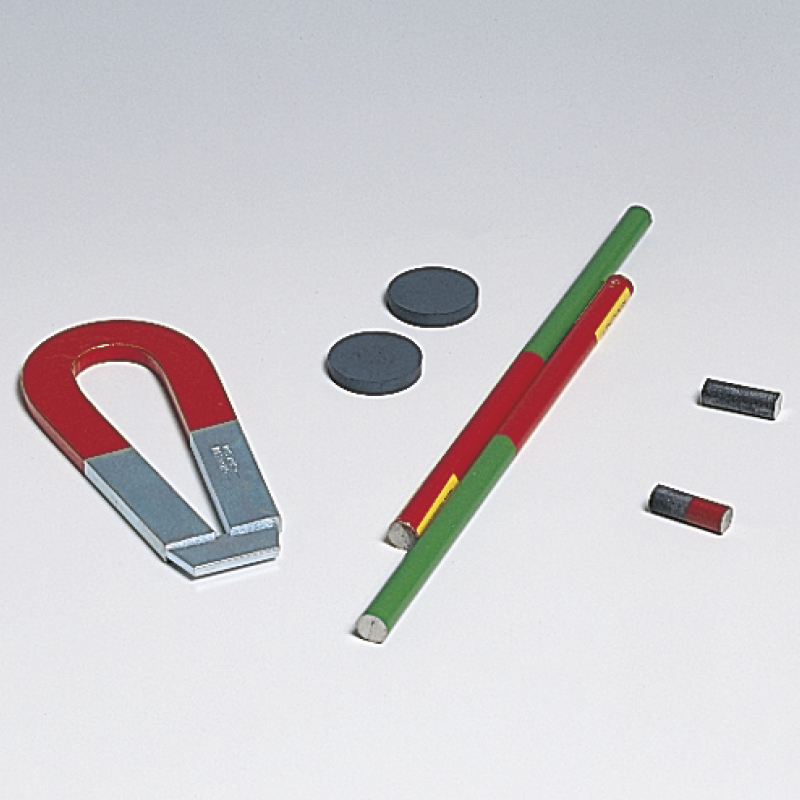

Material for the teaching unit "Magnets"

• 2 disc magnets, 30 mm diameter, 5 mm high
• 1 horseshoe magnet, 125 mm, with anchor
• 2 hanging devices for bar magnets
• 1 magnetic lock
• 1 roll sewing thread, 100m
• 15 bar magnets, 23 mm, north pole marked in red
• 15 bar magnets, 23 mm, no pole markings
• 15 test tubes, plastic, 100 mm
• 200 steel pins in a plastic case

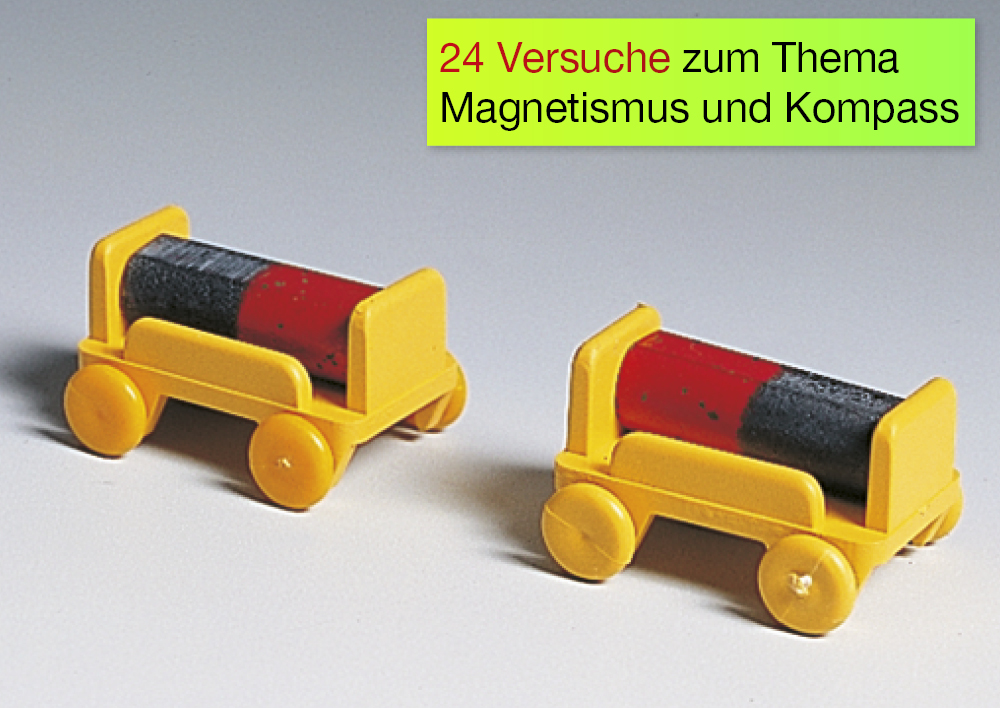

• 15 trolleys for small bar magnets, plastic, approx. 30 x 20 mm
• 2 bar magnets 200 mm
• 15 Styropor® floats for bar magnets, approx. 58 mm ø
• 15 strips with adhesive points, red, approx. 8 mm ø
• 15 sets of small items in plastic boxes (iron sheet 20x20 mm, cardboard sheet 20x20 mm, piece of fabric, copper sheet 20x20 mm, rubber sheet 20x20 mm, nails, aluminium studs, wooden disc 20 mm diameter, stone, paper clips, iron screws galvanised 16 mm, brass sheet 20x20 mm)

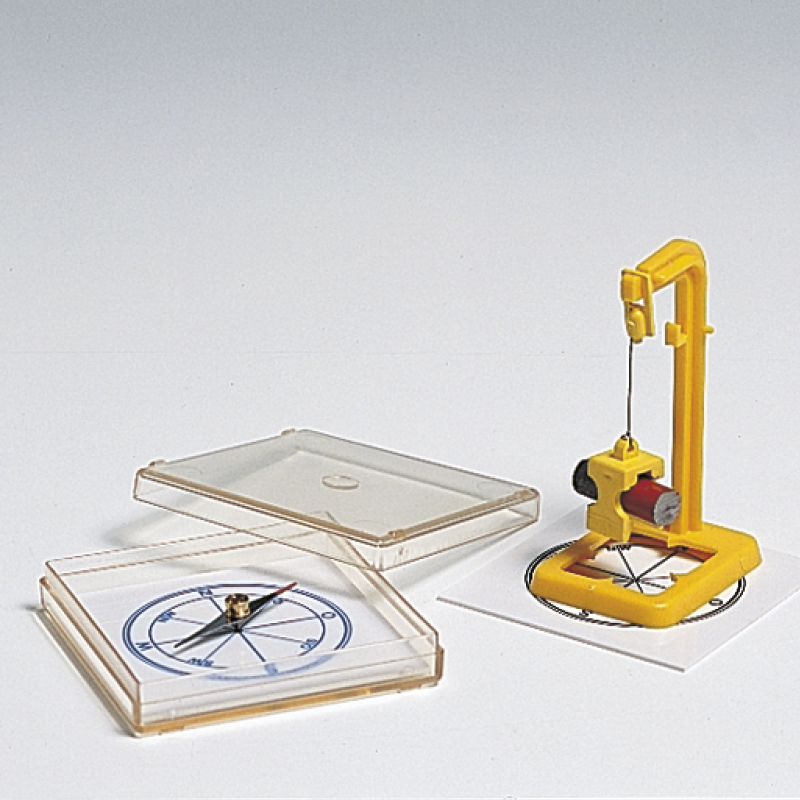

Material for the teaching unit "Compass"

• 15 Styropor® float for compass needle, approx. 28 mm ø
• 15 steel knitting needles, 210 mm
• 1 set spare parts in plastic case (pins for hanging up magnets, eyelets for hanging up magnets, magnetic shoe, trolley axle, bearing pins)
• 1 hiking compass with transparent compass and plastic casing, approx. 6 x 6.5 cm
• 15 compass needle with agate bearing, 36 mm
• 15 brass needles (bearing for compass needles)
• 15 plastic case (compass casing) with bearing pins for compass needles and wind rose discs, approx. 64 x 64 cm
• 15 water bowls, plastic, approx. 150 x 140 mm
• 15 wind rose panel, plastic, 0.7 mm central bore
• 15 magnetic shoe with hanging device and stand, plastic, approx. 4.5 x 3.5 x 7.5 cm
